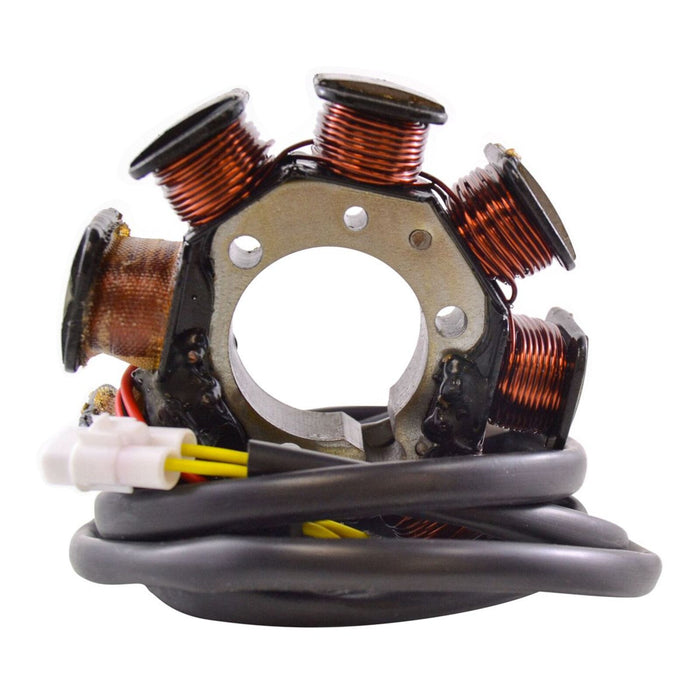

Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)

RMSTATOR

SKU RMS01318

$0
$465.60 - $465.60
$465.60
$465.60 - $465.60
$465.60
Dispatched within 2 working days Dispatched within 2 working days Out Of Stock
 More payment options

Product Information

Direct replacement for your original unit.

  • Plug-and-play, direct fit for easy installation.
  • Constructed with the highest grade lamination materials.
  • Equipped with highest grade copper windings, resistant to 200 degrees Celsius.
  • Includes connector.
  • Includes rubber grommet.
  • All products are tested before shipping.

Specifications:

Dimensions:

  • Interior diameter: 34mm
  • Exterior diameter: 92mm
  • Thickness: 18mm
  • Length of wires (stator to grommet): 100mm
  • Length of wires (grommet to plug): 150mm and 900mm

Other Specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of pins: 4

Wire to Wire Resistance:

  • Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
  • Source (Red to Black/Red): 140 ohms +/- 20%

Part Number

RMS01318
