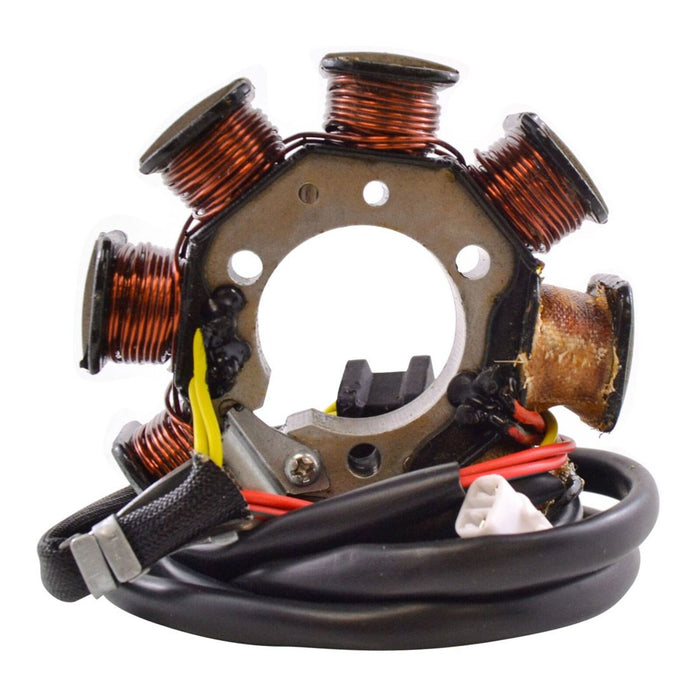

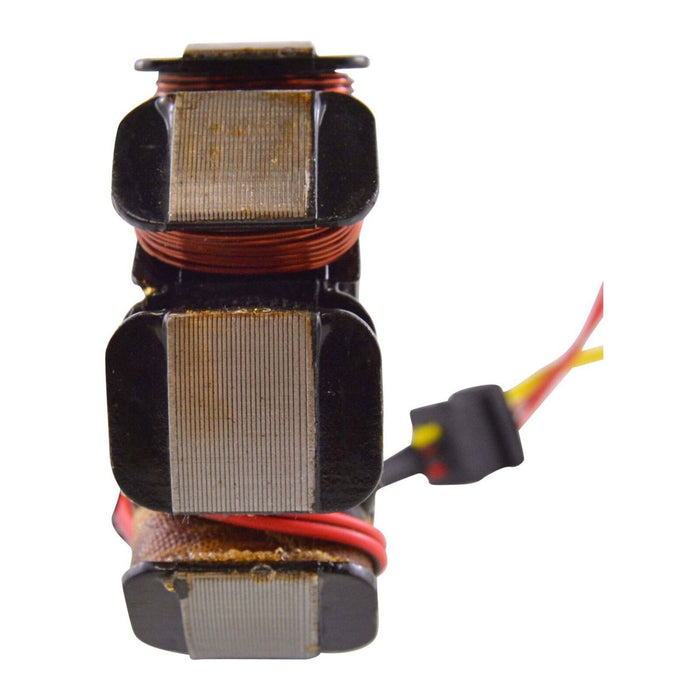

Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)

Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)

RMSTATOR

SKU RMS01318

Our Price

$465.60 - $465.60

$465.60

$465.60 - $465.60

$465.60

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

Direct replacement for your original unit.

Plug-and-play, direct fit for easy installation.
Constructed with the highest grade lamination materials.
Equipped with highest grade copper windings, resistant to 200 degrees Celsius.

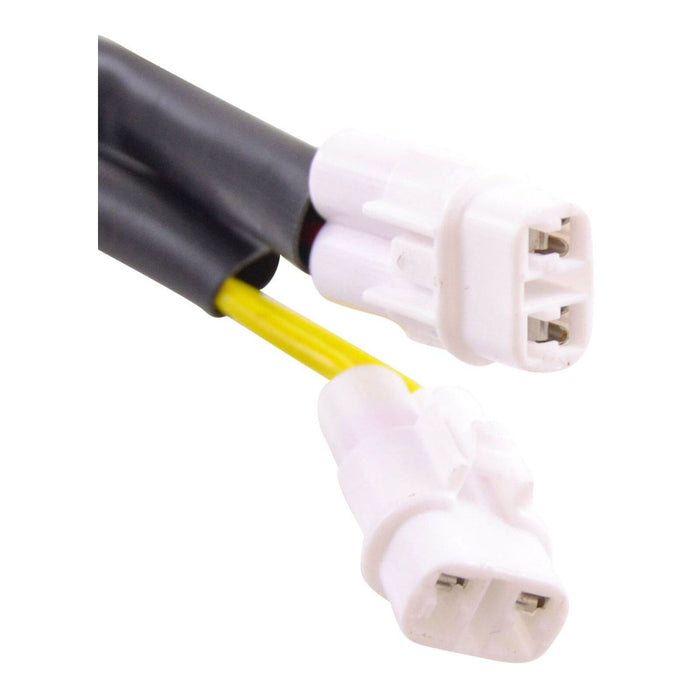

Includes connector.
Includes rubber grommet.
All products are tested before shipping.

Specifications:

Dimensions:

Interior diameter: 34mm
Exterior diameter: 92mm
Thickness: 18mm
Length of wires (stator to grommet): 100mm
Length of wires (grommet to plug): 150mm and 900mm

Other Specifications:

Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to Wire Resistance:

Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
Source (Red to Black/Red): 140 ohms +/- 20%
